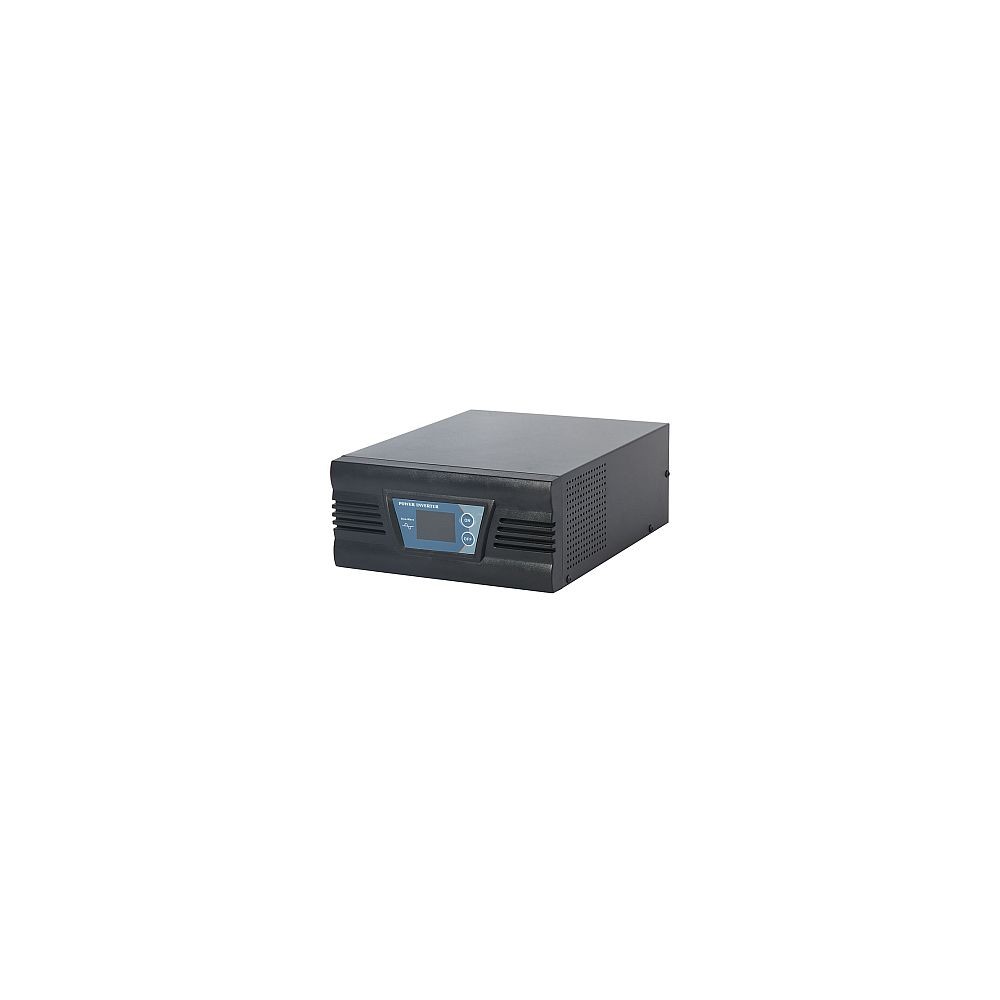

Įtampos keitiklis Buitinis 1000W, 12V
Kodas: 08711090
EAN: 9990000820061
Output Voltage 220Vac / 230Vac / 240Vac
Waveform - Pure Sine Wave
Voltage Regulation (Batt. Mode) < 3% RMS for entire battery voltage range
Output Frequency - 50Hz ± 0.1Hz
Efficiency > 85%
Prekės informacija
Įtampos keitiklis Buitinis 1000W, 12V
- Output Power Continuous - 1'000W
- Input
- Input Nominal Voltage - 230Vac
- Input Voltage Range - 120V~275Vac
- Line Low Transfer - 120Vac ± 2%
- Line Low Return - 130Vac ± 2%
- Line High Transfer - 285Vac ± 2%
- Line High Return - 260Vac ± 2%
- Input Frequency 50Hz (45Hz~70Hz)
- Output
- Output Voltage 220Vac / 230Vac / 240Vac
- Waveform - Pure Sine Wave
- Voltage Regulation (Batt. Mode) < 3% RMS for entire battery voltage range
- Output Frequency - 50Hz ± 0.1Hz
- Efficiency > 85%
- Maximum Load - Up to short circuit
- Asymmetrical Load Max. - Up to nominal output power
- Overload and Short Circuit Protection - Automatic disconnection
- Overheating Temperature Protection - Acoustic warning before shut-off.
- Power Factor - 0.8
- Battery
- Voltage Range 12VDC (10.5~14.3VDC)
- Max. Charging Current 25A
- Display
- LCD Display - INVERTER status, I/P&O/P Voltage Frequency, Load%,Battery Voltage & %, Temperature, Mode
- LED Display - Normal (Green), Warning (Yellow), Fault (Red)
- Audible Alarm
- Battery Mode - Beeping every 4 seconds
- Low Battery - Beeping every second
- Overload - Beeping twice per second
- General date
- AC By Pass Time (UPS Mode) 5ms
- Operation Temperature -20 °C to +55 °C
- Audible Noise Less than 55dBA (at 1M)
- Relative Humidity 0-95% non-condensing
- Physical data
- Unit Dimensions (L x W x H mm) - 320*130*190
- Unit Weight 13kg
- Inner box size(mm) 420*230*300
